Webhook Mode

Introduction

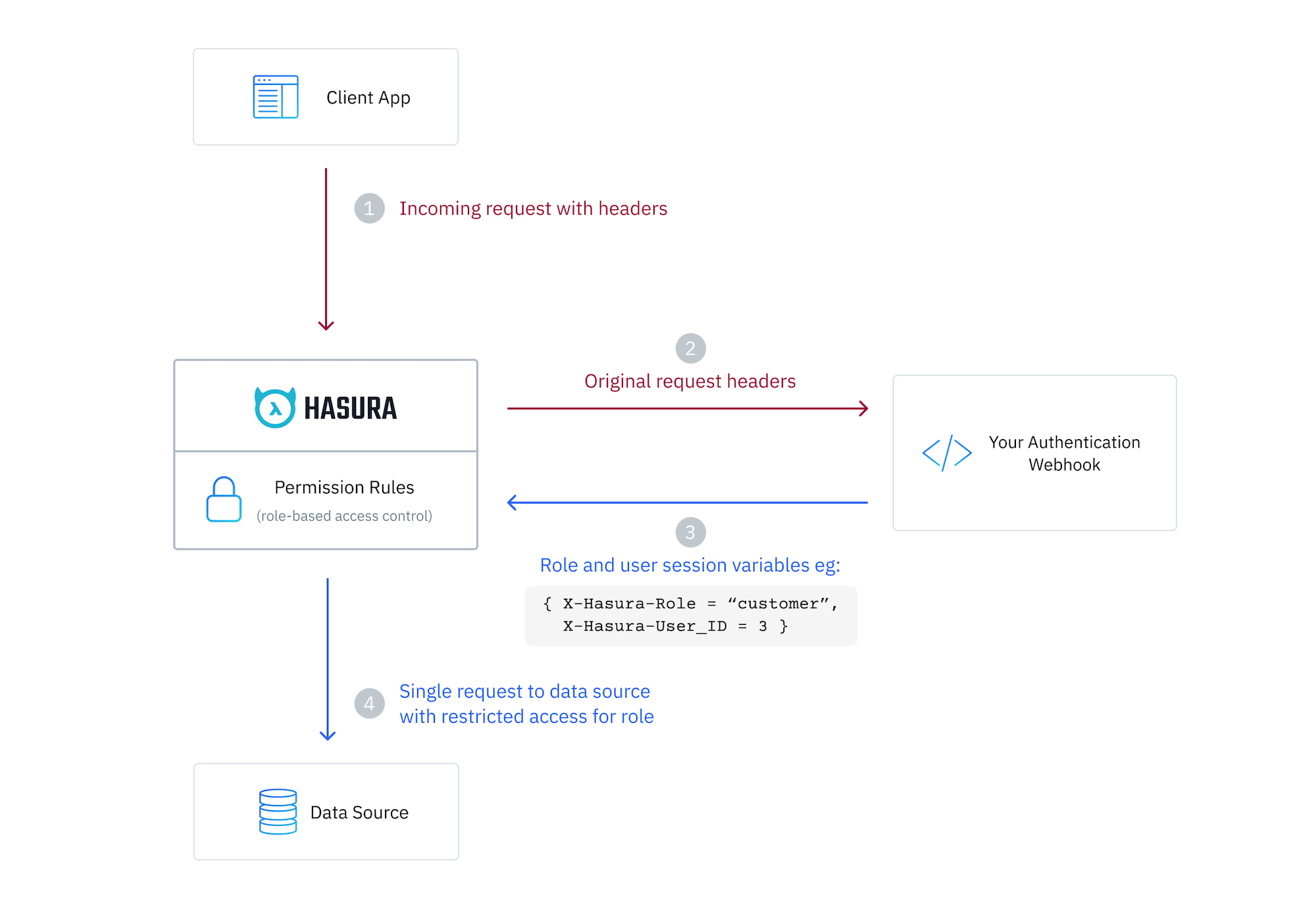

You can enable Hasura DDN to use an auth webhook in just a few steps.

You will need to provide a URL that your application will call with the original request headers, and it should return a body with the session variables after the request is authenticated.

Session variable requirements

The only session variable required is x-hasura-role appearing in the response body.

In contrast to JWT mode, you do not have to pass x-hasura-allowed-roles or x-hasura-default-role session variables and a x-hasura-role header will no be checked.

Session variable keys are case-insensitive. Values are case-sensitive.

Enabling Webhook authentication

Step 1. Update your AuthConfig

Hasura utilizes an AuthConfig object that allows you to define the configuration for your authentication service. In a standard setup the auth-config.hml file can be found in your globals directory.

Hasura VS Code extension

You can use Hasura's VS Code extension to scaffold out your AuthConfig object by typing AuthConfig and selecting this object from the list of available options. As you navigate through the skeleton, you can type CTRL+SPACEBAR at any point to reveal options for the different key-value pairs.

In the example below, we're demonstrating a sample authentication webhook.

globals/metadata/auth-config.hml

kind: AuthConfig
version: v3
definition:
  mode:
    webhook:
      url:
        valueFromEnv: AUTH_WEBHOOK_URL
      method: POST
      customHeadersConfig:
        body:
          headers:
            forward:
              - authorization
              - content-type
        headers:
          additional:
            user-agent: "Hasura DDN"

Example .env file

AUTH_WEBHOOK_URL=http://auth_hook:3050/validate-request

GET vs POST

For a POST request, the headers received by Hasura on the query can be forwarded to the webhook in a JSON object in the body of the request under a headers key.

For a GET request, the headers received by Hasura on the query can be forwarded to the webhook as actual headers on the request and the body will be empty.

What we've provided above is a sample configuration as a POST request but it can be configured as a GET request. See the reference for AuthHookConfig here. For the sample configuration above, the webhook will receive the Authorization and Content-Type headers in the body of the request:

Example body of a POST request

{
  "headers": {
    "Authorization": "Bearer some-token",
    "Content-Type": "application/json"
  }
}

Also, the webhook will receive the user-agent header as an actual header on the request.

Environment variables

You can use environment variables to dynamically and securely add the webhook URL to your AuthConfig. You can add these values to your root-level .env and then map them in the globals subgraph.yaml file. Alternatively, you can include raw strings here using value instead of valueFromEnv.

Step 2. Shaping the webhook request and response

Request

Below is an example of the header object your webhook might receive in the body of a POST request:

Example header object

{
  "headers": {
    "Authorization": "Bearer some-token",
    "Content-Type": "application/json"
  }
}

Headers are forwarded to the auth webhook from the client on each request received by your application either as headers for a GET request or as a JSON object in the body of a POST request under a headers key.

Custom Headers Configuration

You can configure the headers that are sent to the webhook in the optional customHeadersConfig field. If the field is not provided, the default behavior is to forward all headers (after filtering out commonly used headers) received by Hasura on the query to the webhook.

Ignored headers list

Accept Accept-Datetime Accept-Encoding Accept-Language Cache-Control Connection Content-Length Content-MD5 Content-Type
DNT Host Origin Referer User-Agent

When using customHeadersConfig, you can explicitly forward any headers, including those that are ignored by default. This gives you full control over which headers are sent to the webhook.

It is recommended to use the customHeadersConfig field to configure only the headers that are required by the webhook and not forward any other headers. This will help in reducing the size of the request and improve the performance of the webhook.

In this example, we're passing an encoded JWT in the Authorization header, however webhook mode is flexible and you can pass any headers you wish.

Forward all headers

If you want to forward all headers received by Hasura on the query to the webhook, you can set forward: "*". This will forward all headers received by Hasura on the query to the webhook, excluding the ignored headers.

Token Parsing

In this example, the webhook is then responsible for validating and parsing the token passed in the header. It will need to:

• Extract the Token: Retrieve the Authorization header from the incoming request and extract the token.

• Validate the Token: Use a library or your own logic to validate the token. This involves verifying the token's signature with the secret key.

• Extract Claims: Decode the token to extract the claims.

Response

Based on the validation result, the webhook will need to respond with either a 200 status code (for a valid token) or a 401 status code (for an invalid or missing token).

You should respond with session variables beginning with X-Hasura-* in an object in the body of your response. The value of each session variable can be any JSON value. These will be available to your permissions in Hasura.

You will, at least, need to set the X-Hasura-Role session variable to let the Hasura DDN know which role to use for this request. Unlike JWT auth mode, you do not have to pass X-Hasura-Allowed-Roles or X-Hasura-Default-Role session variables.

In the example below the X-Hasura-Is-Owner and X-Hasura-Custom are examples of custom session variables which can be used to enforce permissions in your application.

Example response from your webhook to Hasura DDN

HTTP/1.1 200 OK
Content-Type: application/json

{
    "X-Hasura-Role": "user",
    "X-Hasura-User-Id": 25,
    "X-Hasura-Is-Owner": "true",
    "X-Hasura-Custom": "custom value"
}

Step 3. Define permissions

Let's add some example TypePermissions so that an admin role can access all fields in the Orders type, but we restrict a user role from accessing the deliveryDate field.

Example TypePermissions for Orders type

---
kind: TypePermissions
version: v1
definition:
  typeName: Orders
  permissions:
    - role: admin
      output:
        allowedFields:
          - createdAt
          - deliveryDate
          - id
          - isReviewed
          - productId
          - status
          - updatedAt
          - userId
    - role: user
      output:
        allowedFields:
          - createdAt
          - id
          - isReviewed
          - productId
          - status
          - updatedAt
          - userId

Let's also add some example ModelPermissions so that an admin role can access all rows in the Orders model, but a user role can only access rows where the userId field matches the user id session variable in the JWT.

Example ModelPermissions for Orders model

---
kind: ModelPermissions
version: v1
definition:
  modelName: Orders
  permissions:
    - role: admin
      select:
        filter: null
        allowSubscriptions: true
    - role: user
      select:
        filter:
          fieldComparison:
            field: userId
            operator: _eq
            value:
              sessionVariable: x-hasura-user-id

Step 4. Rebuild your application

For example, from the root of your project, run:

ddn supergraph build local

Step 5. Make an authenticated request

Here we're making a request to our instance which will be validated by our webhook which returns a payload of session variables.

Example response from our webhook to Hasura:

{
  "x-hasura-user-id": "7cf0a66c-65b7-11ed-b904-fb49f034fbbb",
  "x-hasura-role": "user"
}

If we run a query for Orders, we can see that we only get the orders which this user has made and are not able to access the deliveryDate field.
